COMPACT SQUARE PHOTO SENSORS

• Compact housing size and high power LED for excellent performance-size ratio
• IP67 and IP69k for highest protection in wet environments.

Available in diffuse, retro-reflective ,transmitter and receiver models.

ALL VOLTAGE PHOTO SENSORS

• Built-in amplifier accepts wide supply voltage range.
• Slim, space-saving construction measures only 50 x 50 x 17.4 mm.
• Relay outputs with long life expectancy and high switching capacity (3 A,250 V AC).
• Polarized retro reflective type available for glossy or shiny object detection.

Photoelectric switch with built-in amplifier (long distance)

• Retro reflective .Diffuse , transmitter and receiver models
• Sensing Distance of 10 m, with polarized light to detect shiny objects.
• Operation stability monitored by thestability indicator.

Distance-setting Models

• Distance setting models with a long 2 m sensing distance incorporate a teaching function.
• Set sensing area (zone setting) function allows detection of shiny objects with uneven surface.

Common Features

• Meets IEC IP67 requirements.
• M12 rotary connector, pre-wired or terminal block connection

Cylindrical photoelectric sensors in M18 plastic, brass or stainless steel housings

• Large standard portfolio in plastic, brass or stainless steel housings
• Long distance types for highest reliability in dirty environments
• Radial (90°) types for easy mounting and adjustment
• Background suppression model with high precision beam for highest accuracy
• AC and DC switching types

INDUCTIVE PROXIMITY SENSORS.

• Full body stainless steel housing for highest mechanical protection
• Low frequency modulation for metal chip immunity
• Flame retardant cable for high protection against welding spatter damage

Proximity Sensor with a Long Screw Length

• Increased tightening strength. Cable protectors provided as a standard feature.
• Increased indicator visibility. A milled section for wrench grip on all models
• Available in 2 wire and 3 wire DC and 2 wire AC models.
• Shielded and unshielded models.

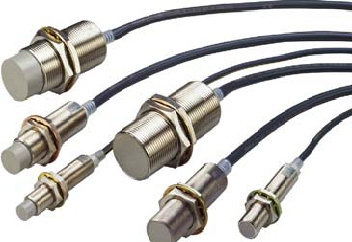

Extended sensing range inductive sensor in cylindrical brass housing

The high quality and the long-life design of the E2A extended sensing distance provide the best value performance ratio for standard applications.

• wide portfolio range through modular concept
• designed and tested for extra long life
• IP67 and IP69k for highest protection in wet environments
• continuously high quality level through specialized manufacturing process
• DC 3-wire and DC 2-wire models
• Normally open (NO), normally closed (NC) and antivalent (NO+NC) models
• up to 30mm sensing distance
• Stainless steel and brass housings
• Pre-wired versions with different cable materials and diameters, M8 and M12 connector types,
• 10-32VDC supply
